2U Rackmount

CSE-219U3TS-R1K62P-T

3.5" (89mm)

17.2" (437mm)

27.76" (705.3mm)

9.96" (H) x 24.6" (W) x 45.43" (D)

Net Weight: 37 lbs (16.8 kg)

Gross Weight: 63 lbs (28.6 kg)

Black Front & Silver Body

Power On/Off

UID button

Slot 1: PCI-E 4.0 x16 FH, 10.5"L

Slot 2: PCI-E 4.0 x8 FH, 10.5"L

Slot 3: PCI-E 4.0 x8 Internal LP

Slot 4: PCI-E 4.0 x16 LP

Slot 5: PCI-E 4.0 x8 FH, 10.5"L

Slot 6: PCI-E 4.0 x8 FH, 10.5"L

Slot 7: PCI-E 4.0 x8 FH, 10.5"L

Slot 8: PCI-E 4.0 x8 FH, 10.5"L

Optional RSC-W2-66G4 enables PCI-E x16 in slots 5, 7. Slots 6,8 will be disabled.

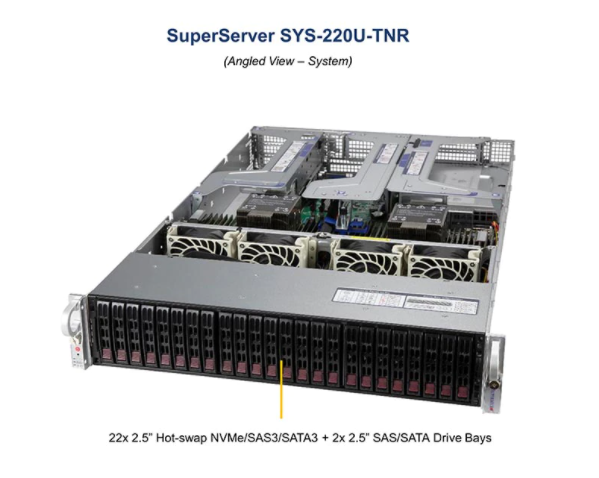

24x 2.5" hot-swap NVMe/SATA/SAS drive bays (22x 2.5" NVMe hybrid) (SAS/NVMe support requires additional parts. Please see the Optional Parts list.)

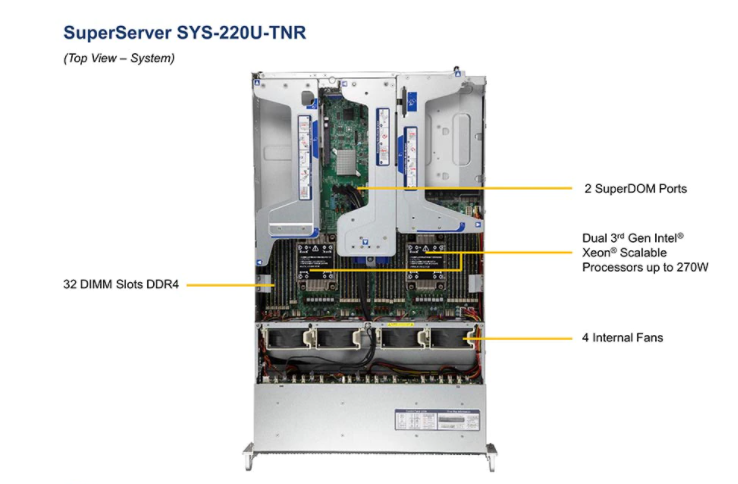

4x 8cm heavy duty fans with optimal fan speed control

2 Air Shroud(s)

73.5 x 40 x 203 mm

1000W: 100-127Vac / 50-60Hz

1600W: 200-240Vac / 50-60Hz

Max: 83A / Min: 0A (100Vac-127Vac)

Max: 133A / Min: 0A (200Vac-240Vac)

Max: 2.1A / Min: 0A

AC-Input

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)

Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)

Operating Relative Humidity:
   8% to 90% (non-condensing)

Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Dual Socket P+ (LGA-4189)

3rd Gen Intel? Xeon? Scalable processors

3 UPI up to 11.2GT/s

Support CPU TDP 270W *

Up to 40C/80T; Up to 60MB Cache

*Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
